Collections Framework

Collections Framework is the architecture to represent and manipulate various Collections in Java. It consists of the following parts:

1. Interfaces provide abstract data types to represent the collection.
2. Implementation Classes are concrete implementations of the existing collection interfaces.
3. Algorithms provide common features for collection manipulation, such as sorting, searching, and shuffling.

Advantages #

• Consistent API. The framework provides a set of interfaces implemented by all the classes. It means that all the similar classes have a common set of methods, which makes them simpler to memorize and use.

• Reduces programming effort. The developer shouldn’t re-implement common data structures in most scenarios and can use already existing ones. In the case of custom implementations, it’s not necessary to design a new structure but to work with the provided abstractions.

• Increases system quality. Provided implementations are using effective and tested algorithms under the hood. The main goal is to choose the proper collection implementation.

Hierarchy #

Java collection classes and interfaces are stored in the java.util package. The collection interfaces are divided into two groups: java.util.Collection and java.util.Map.

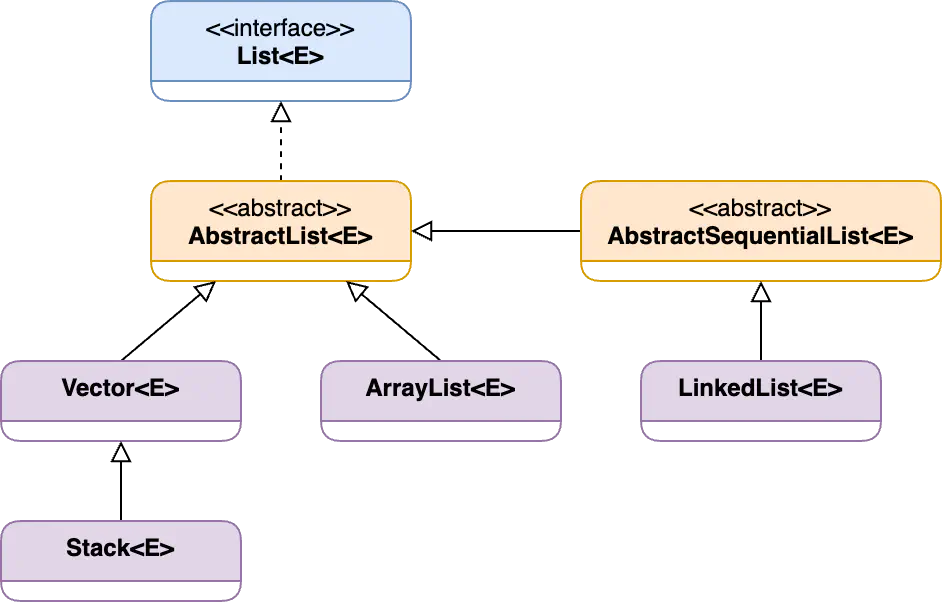

List #

The List interface provides a way to store ordered elements sequentially. It allows positional access and insertion of elements. Classes that implement the interface: ArrayList, LinkedList, Vector, and Stack.

The List interface uses ListIterator to iterate through the elements in forward and backward directions.

Common operations: #

• Adding new elements to the existing list: add(Object), add(int index, Object)
• Accessing elements: get(int index)
• Updating existing elements: set(int index, Object)
• Removing elements: remove(Object), remove(int index)
• Checking the element presentence: contains(Object)
• Retrieving the position of the specific element: indexOf(element), lastIndexOf(element)

Time complexity: #

ArrayList #

ArrayList class provides dynamic arrays in Java, which can be slower than regular arrays but helpful in cases where the size of an array is frequently changed. In other words, it provides the functionality of a dynamic array where the size is not fixed and can be adjusted in runtime.

Under the hood, ArrayList uses a plain array of a bigger size. That size automatically increases when we add more items or decreases when we remove them.

ArrayList stores data till the ArrayList size is full. After that, the size doubles if we want to store more elements. Below there is the simplified algorithm of how the ArrayList expands:

1. Reserves a bigger-sized memory on heap memory
2. Copies existing elements to the new memory
3. Deletes the old memory

Important notes: #

• ArrayList is initialized with the default capacity of 10 elements, but this value changes when we add or remove elements
• ArrayList allows us to access the list randomly
• To store primitive types, we must use wrapper classes (for instance, Integer, Boolean, etc.)
• ArrayList is not synchronized (the Vector class does)
• NULL and duplicated values are allowed
• The insertion order is preserved

// Declaration
public class ArrayList<E> extends AbstractList<E>
  implements List<E>, RandomAccess, Cloneable, java.io.Serializable

// Constructors
public ArrayList()
public ArrayList(int initialCapacity)
public ArrayList(Collection<? extends E> c)

Usage example:

List<String> langs = new ArrayList<>();

langs.add("Java");           // [Java]
langs.add("Python");         // [Java, Python]
langs.add("Ruby");           // [Java, Python, Ruby]
langs.add("Erlang");         // [Java, Python, Ruby, Erlang]

langs.add(1, "Elixir");      // [Java, Elixir, Python, Ruby, Erlang]
langs.add(3, "Elixir");      // [Java, Elixir, Python, Elixir, Ruby, Erlang]

langs.contains("Elixir");    // true
langs.indexOf("Elixir");     // 1
langs.lastIndexOf("Elixir"); // 3

langs.remove("Elixir");      // [Java, Python, Elixir, Ruby, Erlang]

LinkedList #

LinkedList class is implemented on top of the linked list data structure that stores its elements as a separate node. Every node consists of two parts: actual data and the link to the next node. The nodes are linked using pointers and addresses.

• LinkedList works as a dynamic array, so we don’t need to specify its capacity on initialization.
• LinkedList uses a double-linked list containing two pointers - for the forward and the backward nodes.
• LinkedList comes with efficient insertion and deletion operations because it’s not required to shift the existing items but rather update the links on sibling nodes.
• It’s simple to iterate over the elements in both directions
• LinkedList requires more memory compared to the ArrayList because it also stores the node references
• It’s not possible to access an element by its index, so we need to iterate over the list until we find the match

// Declaration
public class LinkedList<E> extends AbstractSequentialList<E>
  implements List<E>, Deque<E>, Cloneable, java.io.Serializable

// Constructors
public LinkedList()
public LinkedList(Collection<? extends E> c)

Usage example:

LinkedList<String> workingDays = new LinkedList<>();

workingDays.add("Monday");
workingDays.add("Tuesday");
workingDays.add("Wednesday");
workingDays.add("Thursday");
workingDays.add("Friday");

// Forward iteration
for (String day : workingDays) {
  System.out.print(day + " ");
}

// Backward iteration
Iterator<String> descendingIterator = workingDays.descendingIterator();
while (descendingIterator.hasNext()) {
  System.out.print(descendingIterator.next() + " ");
}

Vector #

Vector implements a resizable array and works similarly to ArrayList.

• Vector is synchronized and has some legacy methods the collections framework doesn’t provide
• Due to its synchronized nature, it provides worse performance for the core operations
• Vector iterator is fail-fast (throws an exception in case of concurrent modification)
• It was present in the initial Java versions, and it’s still supported

Using the Vector class is not recommended if there is no need for synchronization features. It comes with slower performance and unnecessary overhead.

// Declaration
public class Vector<E> extends AbstractList<E>
  implements List<E>, RandomAccess, Cloneable, java.io.Serializable

// Constructors
public Vector()
public Vector(int initialCapacity)
public Vector(int initialCapacity, int capacityIncrement)
public Vector(Collection<? extends E> c)

Usage example:

Vector<String> mammals= new Vector<>();

// Using the add() method
mammals.add("Dog");
mammals.add("Horse");

// Using index number
mammals.add(2, "Cat");
System.out.println(mammals); // [Dog, Horse, Cat]

// Using addAll()
Vector<String> animals = new Vector<>();
animals.add("Crocodile");

animals.addAll(mammals);
System.out.println(animals); // [Crocodile, Dog, Horse, Cat]

Stack #

Stack class implements stack data structure (last in, first out).

• Stack is thread-safe
• Stack is considered deprecated, and for single-thread logic, it’s recommended to use ArrayDeque

// Declaration
public class Stack<E> extends Vector<E>

// Constructors
public Stack()

Usage example:

Stack<String> trace = new Stack<>();
trace.push("com.example.task01.Test.main(Solution.java:6)");
trace.push("com.example.task01.Test.convertStringToInt(Solution.java:10)");
trace.push("java.base/java.lang.Integer.parseInt(Integer.java:770)");
trace.push("java.base/java.lang.Integer.parseInt(Integer.java:614)");

System.out.println("Exception in thread \"main\":");
while (!trace.isEmpty()) {
  System.out.println("\t" + trace.pop());
}

// Exception in thread "main":
//	java.base/java.lang.Integer.parseInt(Integer.java:614)
//	java.base/java.lang.Integer.parseInt(Integer.java:770)
//	com.example.task01.Test.convertStringToInt(Solution.java:10)
//	com.example.task01.Test.main(Solution.java:6)

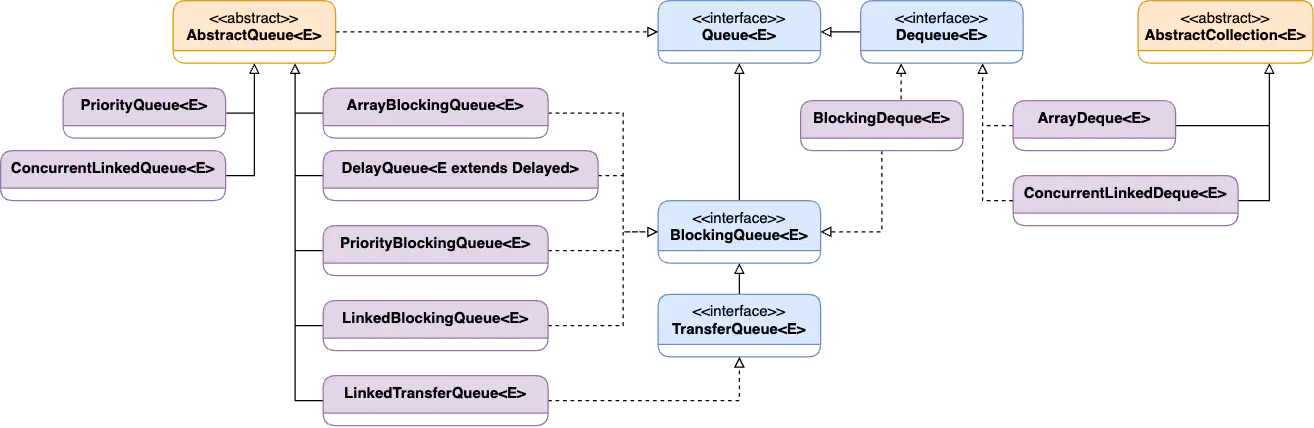

Queue #

Queue interface maintains a specific order of element extraction (for example, FIFO). It is used to insert new elements at the end of the queue and remove them from the beginning of the queue.

The Queue interface is implemented by several classes, including LinkedList, ArrayDeque, PriorityQueue, and ArrayBlockingQueue.

The Queue implementations from the java.util package are Unbounded Queues, whereas implementations from the java.util.concurrent package are Bounded Queues.

Common operations: #

• Adding elements to the end of the queue: add(Object), offer(Object)
• Removing elements at the front of the queue: remove(), poll()
• Accessing front element without removing it: element(), peek()
• Checking the element presentence: contains(Object)
• Retrieving an element by its index: get(int index)

Time complexity: #

PriorityQueue #

PriorityQueue is based on the priority heap and ordered by natural ordering (which can be changed by providing a custom Comparator at queue construction time).

This queue is used when its elements need to be stored and handled based on their priority.

• PriorityQueue doesn’t allow NULL values and non-comparable objects
• PriorityQueue is not thread-safe (the thread-safe alternative is PriorityBlockingQueue)

// Declaration
public class PriorityQueue<E> extends AbstractQueue<E>
  implements java.io.Serializable

// Constructors
public PriorityQueue()
public PriorityQueue(int initialCapacity)
public PriorityQueue(Comparator<? super E> comparator)
public PriorityQueue(int initialCapacity, Comparator<? super E> comparator)
public PriorityQueue(Collection<? extends E> c)
public PriorityQueue(PriorityQueue<? extends E> c)
public PriorityQueue(SortedSet<? extends E> c)

Usage example:

Queue<Integer> ages = new PriorityQueue<>();
ages.add(10);
ages.add(5);
ages.add(99);
ages.add(18);

while (!ages.isEmpty()) {
  System.out.print(ages.poll() + " ");
}
// Output: 5 10 18 99

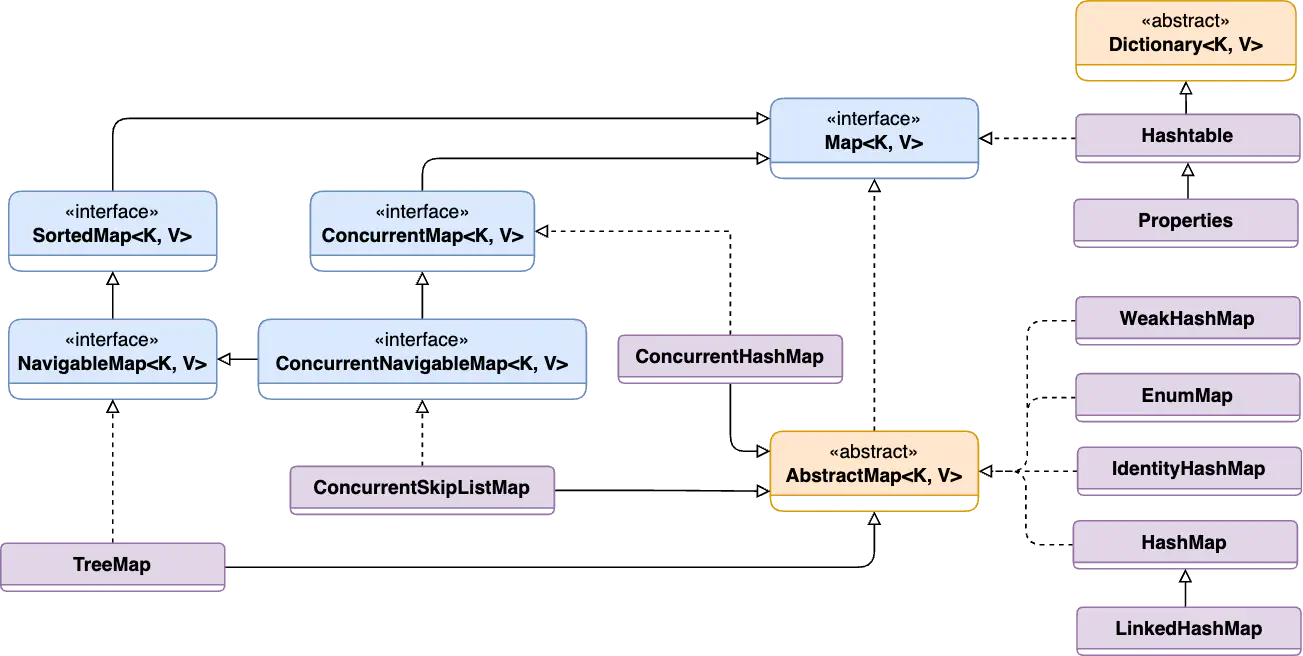

Map #

The Map interface represents a mapping between a key and a value.

• A Map must contain only unique keys, and each key can map to at most one value.
• The order of the stored elements depends on the specific implementation.

Time complexity: #

HashMap #

HashMap class provides a basic implementation of the Map interface.

• Stores key-value pairs
• Fast access time (usually O(1))

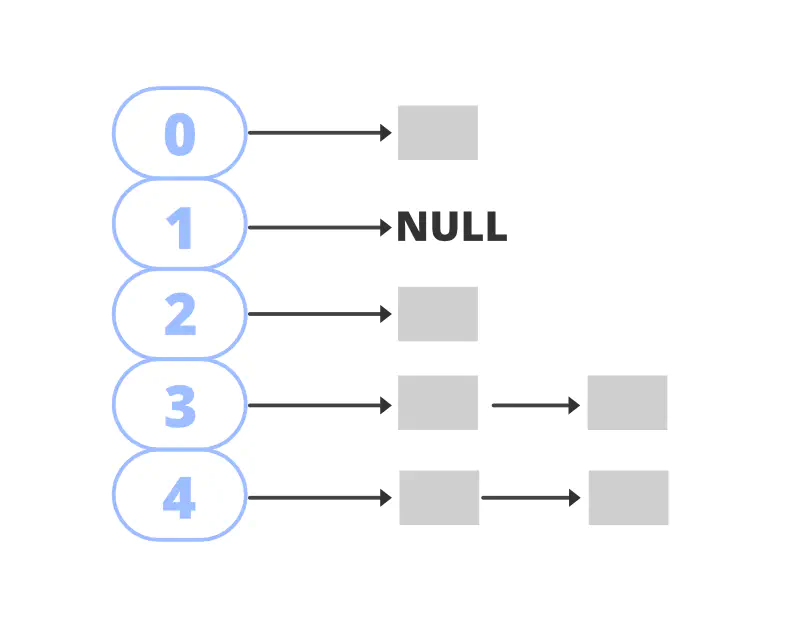

• Uses hash function to map keys to indexes in an array
• Supports null keys and values
• Unordered, which means that the order of elements is not preserved
• Allows duplicate values, but not duplicate keys
• Not thread-safe, because multiple threads can access the same hashmap simultaneously
• Have a capacity and a load factor, which indicates when the hashmap has to be resized

// HashMap class constructors:
new HashMap();
new HashMap(int initialCapacity); // default 16
new HashMap(int initialCapacity, float loadFactor); // default 16 and 0.75
new HashMap(Map map);

LinkedHashMap #

LinkedHashMap has a similar implementation to the HashMap but also maintains an order of inserted elements. The data is stored in the form of nodes.

• Keys are sorted in an insertion order
• It may have one null key and multiple null values

// Declaration
public class LinkedHashMap<K,V> extends HashMap<K,V> implements Map<K,V>

// Constructors
public LinkedHashMap()
public LinkedHashMap(int initialCapacity)
public LinkedHashMap(int initialCapacity, float loadFactor)
public LinkedHashMap(Map<? extends K, ? extends V> m)

Items order preserve example:

Map<String, Integer> linkedHashMap = new LinkedHashMap<>();
linkedHashMap.put("first", 1);
linkedHashMap.put("second", 2);
linkedHashMap.put("third", 3);
System.out.println(linkedHashMap); // {first=1, second=2, third=3}

Map<String, Integer> hashMap = new HashMap<>();
hashMap.put("first", 1);
hashMap.put("seconds", 2);
hashMap.put("third", 3);
System.out.println(hashMap); // {seconds=2, third=3, first=1}

TreeMap #

TreeMap is implemented using a Red-Black tree, which provides efficient performance for common operations, such as adding, removing, and retrieving elements, with an average O(log n) time complexity.

• TreeMap does not allow null keys. However, values might be null.
• Keys are sorted in a natural order.

// Declaration
public class TreeMap<K,V> extends AbstractMap<K,V>
  implements NavigableMap<K,V>, Cloneable, java.io.Serializable

// Constructors
public TreeMap()
public TreeMap(Comparator<? super K> comparator)
public TreeMap(Map<? extends K, ? extends V> m)
public TreeMap(SortedMap<K, ? extends V> m)

Example:

TreeMap<Integer, String> treeMap = new TreeMap<>();

treeMap.put(1, "One");
treeMap.put(3, "Three");
treeMap.put(5, "Five");

treeMap.put(0, "Zero");
treeMap.put(2, "Two");
treeMap.put(4, "Four");

System.out.println("TreeMap: " + treeMap);
// TreeMap: {0=Zero, 1=One, 2=Two, 3=Three, 4=Four, 5=Five}

ConcurrentHashMap #

ConcurrentHashMap is a thread-safe implementation of the Map interface, which means multiple threads can access it simultaneously without synchronization issues.

The object is divided into a number of segments according to the concurrency level (16 by default). To perform an update operation, the thread must lock the particular segment in which the thread wants to operate (Segment locking or Bucket locking).

• The class is thread-safe so that multiple threads can operate on a single object without any complications
• Threads can produce read operations without locking the ConcurrentHashMap object
• It doesn’t support null values for keys and values
• It provides methods for performing atomic operations (putIfAbsent(), replace(), remove())
• It is able to achieve high performance because of its fine-grained locking mechanism
• Requires additional memory overhead compared to other synchronization mechanisms

// Declaration
public class ConcurrentHashMap<K,V> extends AbstractMap<K,V>
  implements ConcurrentMap<K,V>, Serializable

// Constructors
public ConcurrentHashMap()
public ConcurrentHashMap(int initialCapacity)
public ConcurrentHashMap(Map<? extends K, ? extends V> m)
public ConcurrentHashMap(int initialCapacity, float loadFactor)
public ConcurrentHashMap(int initialCapacity, float loadFactor, int concurrencyLevel)

ConcurrentSkipListMap #

ConcurrentSkipListMap keys are sorted by natural order (or by using a Comparator) at the time of construction. It has the expected time cost of O(log N) for insertion, deletion, and searching operations. The class is thread-safe, meaning all the basic operations can be processed concurrently.

The class can be used for good average performance for search operations. At the same time, using it in cases where too many add/remove operations is not recommended.

• It doesn’t allow null keys and values
• More efficient for searching elements compared to ConcurrentHashMap
• It uses a concurrent variation of SkipList data structure providing log(n) time cost for main operations
• It has additional operations for searching elements: firstKey/lastKey, higherKey/lowerKey, ceilingKey, floorKey

// Declaration
public class ConcurrentSkipListMap<K,V> extends AbstractMap<K,V>
  implements ConcurrentNavigableMap<K,V>, Cloneable, Serializable

// Constructors
public ConcurrentSkipListMap()
public ConcurrentSkipListMap(Comparator<? super K> comparator)
public ConcurrentSkipListMap(Map<? extends K, ? extends V> m)
public ConcurrentSkipListMap(SortedMap<K, ? extends V> m)

HashTable #

• Null values can’t be used as a key (because null is not an object and doesn’t have the hashCode() method)
• It is similar to HashMap but synchronized (Thread-safe), which can lead to slower performance compared to other implementations
• Considered deprecated in favor of HashMap

// Declaration
public class Hashtable<K,V> extends Dictionary<K,V>
  implements Map<K,V>, Cloneable, java.io.Serializable

// Constructors
public Hashtable()
public Hashtable(int initialCapacity)
public Hashtable(int initialCapacity, float loadFactor)
public Hashtable(Map<? extends K, ? extends V> t)

Hashtable is implemented as an array of buckets that stores the key/value pairs. The target bucket is determined by the hashCode() method, invoked on the key, which returns a non-negative integer. If two different objects have the same hash-code, it’s called a collision.

Properties #

• Properties is a subclass of Hashtable
• Used to store a list of mappings where both key and value are strings
• It can be used to retrieve the properties of the system, properties files
• If the external properties record changes, it will be picked up without re-compilation.
• Properties provide methods to load/store data using a stream

// Declaration
public class Properties extends Hashtable<Object, Object>

// Constructors
public Properties()
public Properties(int initialCapacity)
public Properties(Properties defaults)
private Properties(Properties defaults, int initialCapacity)

Usage examples:

// Prints operation system name
Properties sysProps = System.getProperties();
System.out.println("User System: " + sysProps.get("os.name"));

// Saves system properties to a file
Writer writer = new FileWriter("system.properties");
sysProps.store(writer, "System properties");

// Prints system properties to a console in the XML format
sysProps.storeToXML(System.out, "");

WeakHashMap #

WeakHashMap is similar to HashMap except for the Garbage Collection behavior. Elements in a WeakHashMap can be removed by the GC if there are no other references to the key object.

WeakHashMap uses Weak Reference Objects to reference the entry values.

It’s useful to avoid memory leaks in caching-related logic when the desired lifetime of cache records is determined by external references to the key (not the value!).

// Declaration
public class WeakHashMap<K,V> extends AbstractMap<K,V>
  implements Map<K,V>

// Constructors
public WeakHashMap()
public WeakHashMap(int initialCapacity)
public WeakHashMap(int initialCapacity, float loadFactor)
public WeakHashMap(Map<? extends K, ? extends V> m)

Usage example:

public static void process(Map<Integer, String> map) {
  Integer key = new Integer(1); // 1. Create key object
  map.put(key, "one");          // 2. Add record to the map
  key = null;                   // 3. Delete reference to the key
  System.gc();                  // 4. Run Garbage Collector
}

public static void main(String[] args) {
  WeakHashMap<Integer, String> weakMap = new WeakHashMap<>();
  process(weakMap);
  System.out.println(weakMap); // Empty map: {}

  HashMap<Integer, String> hashMap = new HashMap<>();
  process(hashMap);
  System.out.println(hashMap); // Non-empty map: {1=one}
}

EnumMap #

EnumMap is a Map implementation for enumeration types designed to be used with enums as keys. It’s a strongly-typed implementation that ensures that only enum constants can be used as keys.

• Keys of EnumMap are sorted by the order of enum constraints declared inside the enum type
• It uses high-performance Map implementation, faster than HashMap
• Each instance of EnumMap is associated with a specific enum class, which means that all keys must be keys of that enum type
• Null keys are not allowed

// Declaration
public class EnumMap<K extends Enum<K>, V> extends AbstractMap<K, V>
  implements java.io.Serializable, Cloneable

// Constructors
public EnumMap(Class<K> keyType)
public EnumMap(EnumMap<K, ? extends V> m)
public EnumMap(Map<K, ? extends V> m)

Usage example:

enum Color { RED, GREEN, BLUE }

Map<Color, String> enumMap = new EnumMap<>(Color.class);
enumMap.put(Color.BLUE, "#0000FF");
enumMap.put(Color.RED, "#FF0000");
enumMap.put(Color.GREEN, "#00FF00");

System.out.print(enumMap); // {RED=#FF0000, GREEN=#00FF00, BLUE=#0000FF}
System.out.print(enumMap.keySet());         // [RED, GREEN, BLUE]
System.out.print(enumMap.values());         // [#FF0000, #00FF00, #0000FF]
System.out.print(enumMap.get(Color.GREEN)); // #00FF00

IdentityHashMap #

The IdentityHapMap implements a Map interface, using reference-equality when comparing keys (and values). It is used when the client requires the objects to be compared via references.

• Uses == equality operator instead of equals() method
• Not synchronized and must be synchronized externally
• Uses System.identityHashCode() instead of hashCode(), which allows to mutate key objects
• Faster lookups than in HashMap because of reference-equality comparison
• It uses more memory than HashMap because it stores references to the objects instead of their generated hashes

// Declaration
public class IdentityHashMap<K,V> extends AbstractMap<K,V>
  implements Map<K,V>, java.io.Serializable, Cloneable

// Constructors
public IdentityHashMap()
public IdentityHashMap(int expectedMaxSize)
public IdentityHashMap(Map<? extends K, ? extends V> m)

Usage examples:

Map<String, String> identityMap = new IdentityHashMap<>();

String key1 = "default";
String key2 = "default";

identityMap.put(key1, "first");
identityMap.put(key2, "second");

System.out.print(identityMap); // {default=second}

Map<String, String> identityMap = new IdentityHashMap<>();

String key1 = new String("default");
String key2 = new String("default");

identityMap.put(key1, "first");
identityMap.put(key2, "second");

System.out.print(identityMap); // {default=first, default=second}

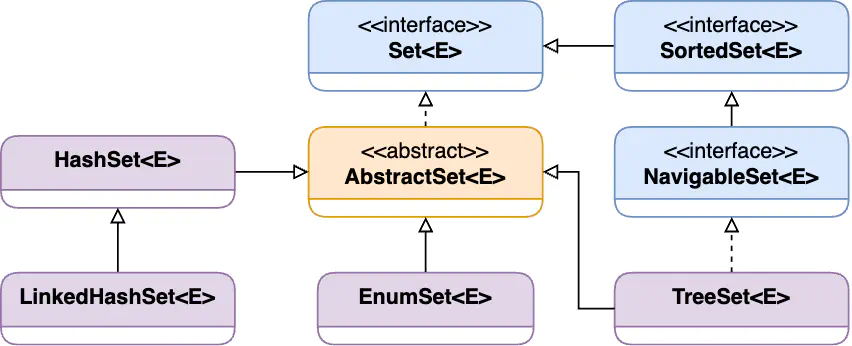

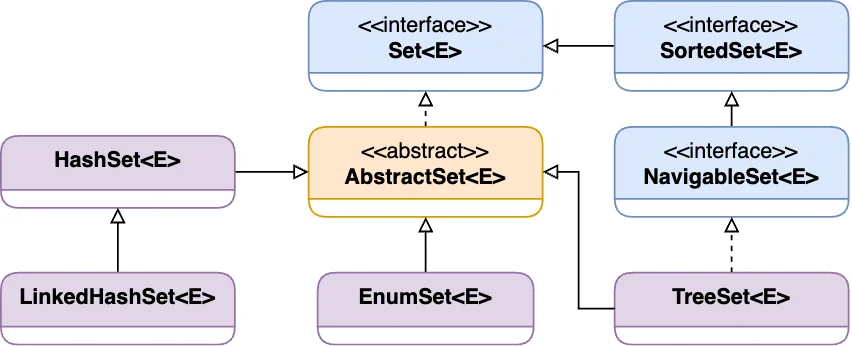

Set #

The Set interface represents an unordered collection of unique elements.

• Extends Collection interface with a feature that restricts the insertion of duplicated elements

Time complexity: #

HashSet #

HashSet class is implemented using a HashMap instance backed by a hash table. This fact means a constant performance for the basic operations like add, remove, contains, and size.

• Implements Set interface and extends AbstractSet class
• The underlying data structure is Hashtable
• Restricts duplicated values, which means that all the values in the Set must be unique
• NULL elements are not allowed
• Unordered

// Declaration
public class HashSet<E> extends AbstractSet<E>
  implements Set<E>, Cloneable, java.io.Serializable

// Constructors
public HashSet()
public HashSet(Collection<? extends E> c)
public HashSet(int initialCapacity)
public HashSet(int initialCapacity, float loadFactor)

Usage example:

Set<String> names = new HashSet<>();

names.add("Jhon");
names.add("Doe");

names.contains("Jhon"); // true
names.remove("Jhon"); // true

LinkedHashSet #

LinkedHashSet is an ordered version of the HashSet class that maintains a double-linked list for all elements. LinkedHashSet allows iterating through its elements in the same order they were inserted.

• Maintains insertion order

// Declaration
public class LinkedHashSet<E> extends HashSet<E>
  implements Set<E>, Cloneable, java.io.Serializable

// Constructors
public LinkedHashSet()
public LinkedHashSet(Collection<? extends E> c)
public LinkedHashSet(int initialCapacity) // default 16
public LinkedHashSet(int initialCapacity, float loadFactor) // default 16 and .75f

Usage example:

Set<Integer> numsSet = new HashSet<>();
Set<Integer> numsLinkedSet = new LinkedHashSet<>();

for (int i = 10; i > 0; i--) {
    numsSet.add(i);
    numsLinkedSet.add(i);
}

System.out.println(numsSet);       // [1, 2, 3, 4, 5, 6, 7, 8, 9, 10]
System.out.println(numsLinkedSet); // [10, 9, 8, 7, 6, 5, 4, 3, 2, 1]

EnumSet #

EnumSet is an implementation of the Set interface for use with enumerable types.

• It’s a high-performance Set implementation, much faster than HashSet
• All the elements must come from the same enumeration
• Uses a fail-safe iterator (won’t throw an exception if the set is modified during the iteration)
• NULL values are not allowed

// Declaration
public abstract sealed class EnumSet<E extends Enum<E>> extends AbstractSet<E>
  implements Cloneable, java.io.Serializable permits JumboEnumSet, RegularEnumSet

// Constructors
EnumSet(Class<E>elementType, Enum<?>[] universe)

Usage example:

enum WorkDays { MON, TUE, WED, THU, FRI };
EnumSet<WorkDays> set1, set2, set3, set4;

// [MON, TUE, WED]
set1 = EnumSet.of(WorkDays.MON, WorkDays.TUE, WorkDays.WED);

// [THU, FRI]
set2 = EnumSet.complementOf(set1);

// [MON, TUE, WED, THU, FRI]
set3 = EnumSet.allOf(WorkDays.class);

// [MON, TUE, WED]
set4 = EnumSet.range(WorkDays.MON, WorkDays.WED);

TreeSet #

TreeSet class implements the SortedSet interface and uses a balanced Tree as an underlying data structure. The added elements can be ordered by a custom Comparator provided at set creation time. The main advantage of storing the elements as a tree is additional navigation methods for traversing that tree.

• The implementation of a TreeSet is not synchronized

// Declaration
public class TreeSet<E> extends AbstractSet<E>
  implements NavigableSet<E>, Cloneable, java.io.Serializable

// Constructors
public TreeSet()
public TreeSet(SortedSet<E> s)
public TreeSet(Comparator<? super E> comparator)
public TreeSet(Collection<? extends E> c)

Usage example:

public class TreeSetExample {
  static class ModulusComparator implements Comparator<Integer> {
    @Override
    public int compare(Integer o1, Integer o2) {
      return (o1 % 10) - (o2 % 10);
    }
  }

  public static void main(String[] args) {
    Comparator<Integer> comparator = new ModulusComparator();
    TreeSet<Integer> numbers = new TreeSet<>(comparator);

    numbers.add(8);
    numbers.add(4);
    numbers.add(15);
    numbers.add(19);
    numbers.add(22);
    numbers.add(53);
    numbers.add(101);

    System.out.println(numbers); // [101, 22, 53, 4, 15, 8, 19]
  }
}

Resources #

• 📑 Collections in Java - GeeksforGeeks
