HTTPS (SSL/TLS)

Hypertext transfer protocol secure (HTTPS) is the secure version of HTTP, which is the primary protocol used to send data between a web browser and a website. HTTPS is encrypted in order to increase the security of data transfer.

SSL

Secure Sockets Layer (SSL) is an Internet security protocol. Its purpose is to ensure privacy, authentication, and data integrity in Internet communication.

SSL was developed in 1995 and later, in 1999, was updated to become TLS. However, the term SSL and TLS are often used interchangeably because SSL 3.0 has been replaced with TLS 1.0, which follows the SSL principles.

What does SSL?

  • SSL encrypts data that is transferred between a server and a client. If someone intercepts the data in the middle, he will not be able to decrypt and access it.
  • SSL initiates a handshake process between the communicating machines to verify them.
  • SSL signs the transferred data to prove data integrity and verify that it wasn’t modified at the time of transferring

Involved Cryptography

Encryption - a process of converting readable data (plaintext) into its coded unreadable version (ciphertext).

Decryption - turning the process of encryption back and extracting the source information.

To encrypt/decrypt information, components must agree on the used encryption algorithm (cipher function) and its parameters (including a secret key).

Encryption methods:

  1. Symmetric - both components share a common secret key.

This method requires both components to know a secret value to encrypt/decrypt messages. The problem with this flow is that this secret value needs to be shared in some way before the communication begins.

Symmetric encryption protects the actual data in transit since it’s much faster than asymmetric encryption.

Symmetric Encryption

  1. Asymmetric - one component has a pair of secret and public keys.

Asymmetric encryption uses public and secret keys to perform communication. The source information is encrypted using a public key and might be decrypted only with a corresponding secret key.

Asymmetric encryption is used to exchange the secret for the first time. The first asymmetric part of the handshake is also known as key exchange, and why the actual encrypted communication uses algorithms known as cipher methods.

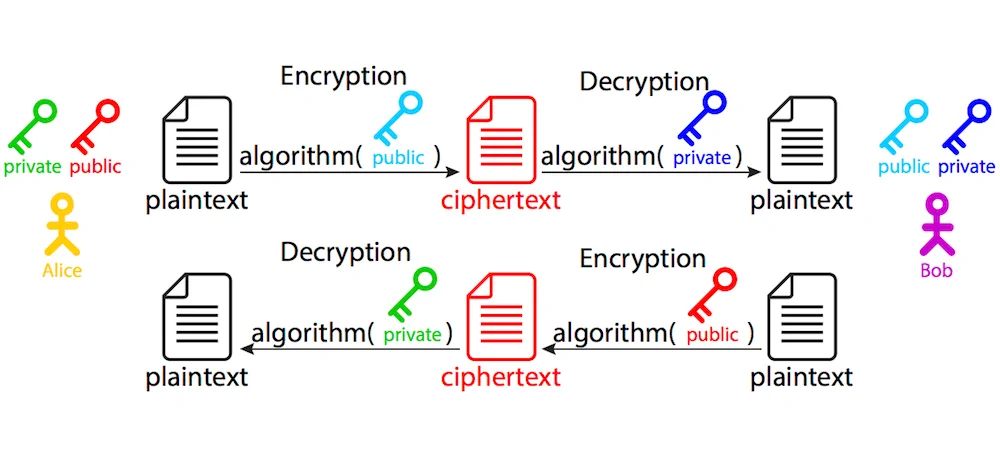

Asymmetric Encryption

SSL/TLS Handshake

The handshake happens whenever a client starts communication with a server over HTTPS protocol after a TCP connection has been established via a TCP handshake.

The general handshake algorithm is described below:

  1. Client’s ‘hello’ message: Initiates a handshake with the message that contains a supported TLS version, clipper suites, and client random (a random string of bytes).
  2. Server’s ‘hello’ message: Response from the server with the server’s SSL certificate, chosen cipher suite, and server random (a random string of bytes).
  3. Authentication: The client verifies the SSL certificate with the authority that issued it.
  4. The premaster secret: The client sends a random string (premaster secret) encrypted with the public server key (retrieved from the SSL certificate).
  5. The decryption of premaster secret: The server decrypts the received premaster secret using the private key stored on the server.
  6. Session keys generated: Both client and server generate session keys based on the client random, server random, and premaster secret.
  7. The client is ready: The client sends a ‘finished’ message encrypted with a session key
  8. The server is ready: The server sends a ‘finished’ message encrypted with a session key
  9. Connection established: The handshake is completed, and communication continues with the session keys.

TLS Handshake Flow

SSL Certificates

SSL Certificate (also called TLS certificate) - a digital certificate that authenticates a website’s identity and enables an encrypted connection.

SSL certificates include:

  • The domain name that the certificate was issued for
  • Which person, organization, or device it was issued to
  • Which certificate authority issued it
  • The certificate authority’s digital signature
  • Associated subdomains
  • Issue date of the certificate
  • The expiration date of the certificate
  • The public key (the private key is kept secret)

SSL Certificates might be represented in different formats. There is a good SSL Certificate Formats article describing them.

SSL Certificate Types

SSL certificates might be issued for a single domain or a few domains at the same time. Here are the common types of SSL certificates:

  • Single Domain. The certificate applies to only one domain (subdomains are excluded). All the routes of that domain are secured. For instance, if the single domain certificate was issued for the example.com (www.example.com) domain, it will not cover its subdomains (*.example.com) but cover its routes (e.g. example.com/articles).

  • Wildcard. The certificate applies to the issued domain and all its subdomains. For instance, if a wildcard domain was issued to example.com, all its subdomains *.example.com (e.g. blog.example.com) will also be secured.

  • Multi-Domain. The certificate is issued to the list of different distinct domains. Each domain can share this certificate. Multi-domain certificates allow for a single unique IP address for multiple domain names.

SSL Certificates generation

Here is the process for getting a valid SSL certificate:

  1. Create a private and public key pair, and prepare a Certificate Signing Request (CSR)
  2. Contact a Certification Authority (CA) and request an SSL certificate based on the CSR
  3. Install the certificate on the HTTP server

Generate on Unix-based system

  1. Make sure that the openssl toolkit is installed:
openssl version
  1. Generate a private key and CSR using the following command:
openssl req -newkey rsa:2048 -nodes -keyout example.com.key -out example.com.csr

You will be asked to enter information that will be incorporated into your certificate request.

Self-signed certificates

It’s possible to create a self-signed certificate instead of requesting a CA to do it. It could be used for testing purposes, but this certificate will not be trusted by browsers.

openssl req -x509 -newkey rsa:4096 -keyout key.pem -out cert.pem -sha256 -days 365

Let’s Encrypt CA

Let’s Encrypt is a Certificate Authority that provides free SSL certificates using an automated domain validation process. That’s done via a certificate management agent running on the web server.

Here are the main steps for issuing certificates with LE CA:

1. Domain validation. The certificate management agent generates a key pair and proves to Let’s Encrypt that the server controls the subject domain.

2. Certificate issuance. Once Let’s Crypt CA ensures that the domain corresponds to the server application, the agent creates CSR to be processed.

3. Certificate renewal (Optional). The server might set up a certificate renewal process as a CRON job to keep the certificate up to date.

However, there are some Let’s Encrypt limitations that should be noticed:

  • Certificates expire after 90 days. It’s important to have a renewal process configured
  • Some hosting services might not provide a straightforward connection
  • There is no Customer Support service that can help in case of any issues
  • Let’s Encrypt has some request limitations. See Rate Limits
